Season 2004

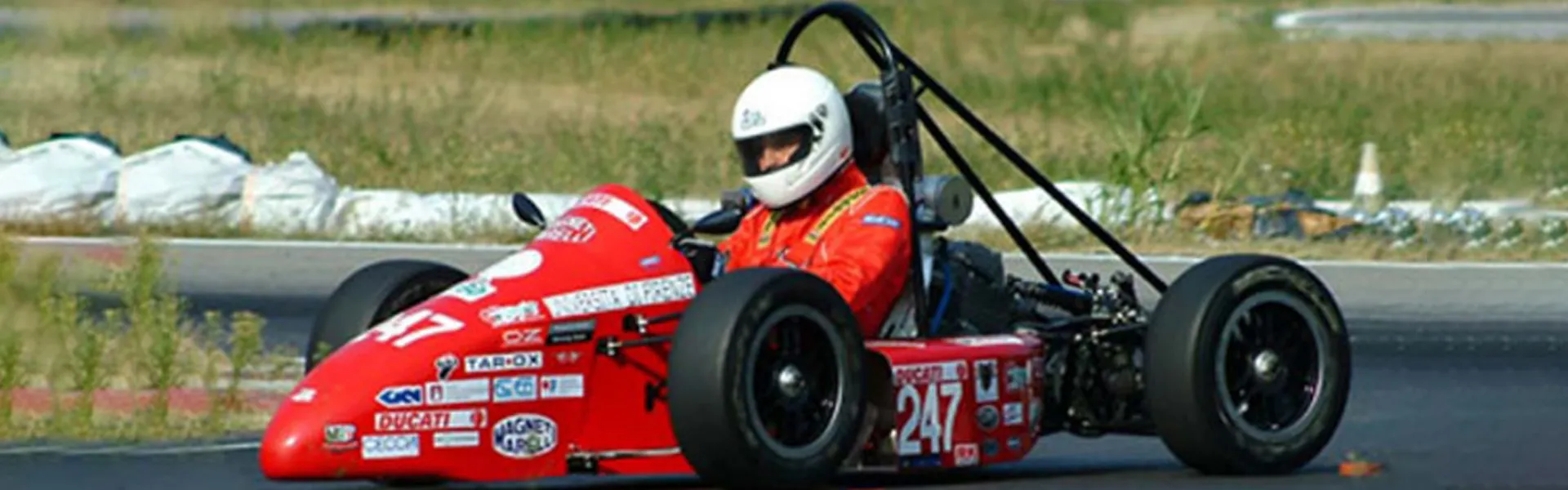

The F2004-v2ss is the second vehicle created by the Firenze Race Team, developed in 2004 to compete in Formula SAE. Although it is an evolution of the F2003-v2, it does not introduce significant changes in terms of chassis and engine. The F2004-v2ss retains many of the structural and mechanical features of its predecessor, representing a refinement rather than a revolution.

• CAR Nº 247@FS04
• SCHOOL TEAM NAME Università di Firenze
• LOCATION Firenze, Italy
• TEAM CAPTAIN(S) Tommaso Iacomelli
• FACULTY ADVISOR(S) Prof. Renzo Capitani, Daniele G. Rosti
• COLOUR(S) Red

CHASSIS

• CHASSIS/FRAME Steel Spaceframe AISI 4130
• BODYWORK Fiber glass
• SHIFTER Manual shifter
• BRAKES 2 floating discs front, 1 floating disc rear
• FRONT SUSPENSION Unequal lenght double wishbones, mono shock
• REAR SUSPENSION Unequal lenght double wishbones, anti roll bar
• WHEELS 6x13 Mg Rims
• TYRES Avon 6.2/20-13 A40
• OVERALL LENGHT 2956 mm
• WHEELBASE 1535 mm
• FRONT TRACK 1240 mm
• REAR TRACK 1200 mm
• MASS FR./RR DISTRIBUTION 50/50
• MASS 225 kg

MOTORE

• ENGINE Ducati 610
• N. CYLINDER 2
• COOLING & INDUCTION Air cooling
• FUEL SYSTEM Electronic injection
• ANY OTHER INFO. Desmodromic engine
• TRANSMISSION Chain transmission
• DIFFERENTIAL Limited slip differential
• FINAL DRIVE 14/52
