FR-24
Season 2024

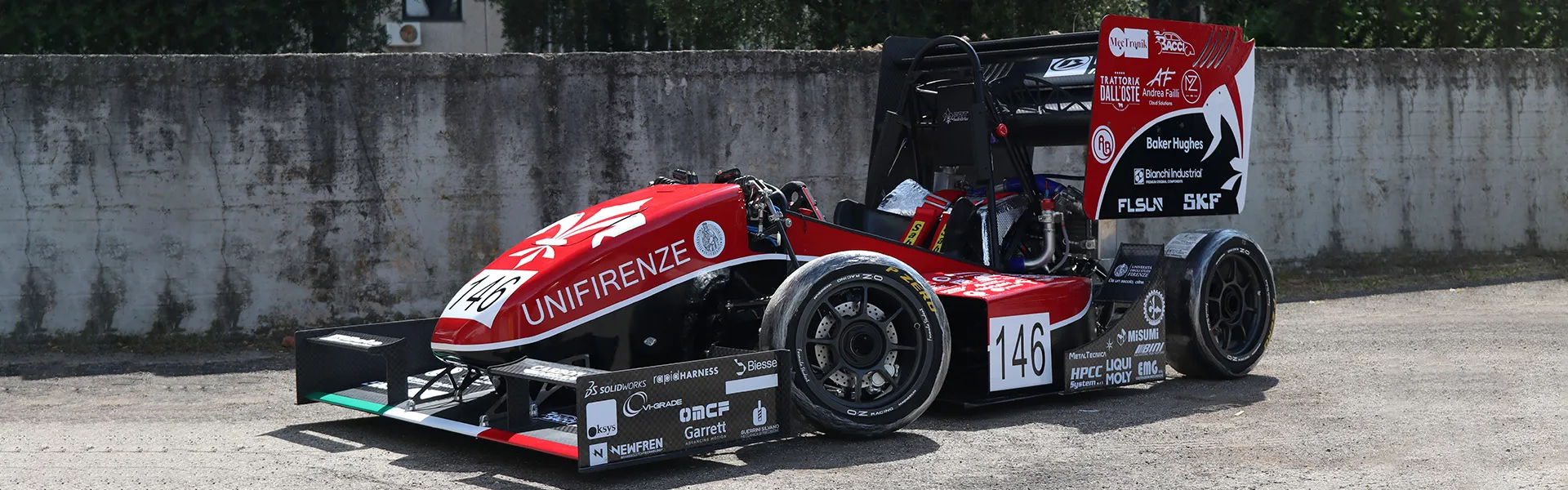

The FR-24, the car designed by the Firenze Race Team for the 2024 racing season, introduces a groundbreaking feature: autonomous driving, integrated from the very first stages of the project. This innovative approach led to a complete redesign of the car’s core systems, all developed to ensure fully autonomous movement on the track. Thanks to advanced sensors and onboard cameras, the FR-24 can process real-time data and adapt precisely to the circuits.
- CHASSIS TYPE Steel tubular space frame
- WHEELBASE 1550 mm
- FRONT - REAR TRACK WIDTH 1250 mm - 1230 mm
- OVERALL LENGTH 2915 mm
- WEIGHT DISTRIBUTION 50% Front - 50% Rear (with driver onboard)
- WEIGHT (without driver) 220 kg
- WHEELS OZ magnesium rims 7” x 13”, Pirelli tires
- ENGINE Beta RR 480cc
- FUEL INJECTION Twin injector system
- FORCED INDUCTION Garrett NGT-1344z turbocharger with electronic wastegate
- GEARBOX Electronically actuated pneumatic sequential transmission
- MAX TORQUE 60 Nm @ 6500 rpm
- POWER 75 hp / 55 kW @ 9500 rpm
- DIFFERENTIAL Limited slip differential
- AUTONOMOUS SYSTEM PC with Intel i7-9700, GTX 1660 Super
- AUTONOMOUS SENSORS Stereolabs ZED2i
